Documentation for Breeze.jl

Overview

Breeze.jl is a Julia package for finite volume GPU and CPU large eddy simulations (LES) of atmospheric flows. Under the hood, Breeze's abstractions, design, and finite volume engine are based on Oceananigans.

Features

Breeze provides two ways to simulate atmospheric flows:

  • A MoistAirBuoyancy that can be used with Oceananigans' NonhydrostaticModel to simulate atmospheric flows with the Boussinesq approximation.
  • A prototype AtmosphereModel, which uses the anelastic approximation following Pauluis 2008.

Installation

To use Breeze, install directly from github:

using Pkg
Pkg.add("https://github.com/NumericalEarth/Breeze.jl.git")

Quick Start

A basic free convection simulation:

using Oceananigans
using Oceananigans.Units
using CairoMakie
using Breeze

Nx = Nz = 64
Lz = 4 * 1024
grid = RectilinearGrid(CPU(), size=(Nx, Nz), x=(0, 2Lz), z=(0, Lz), topology=(Periodic, Flat, Bounded))

reference_constants = Breeze.Thermodynamics.ReferenceConstants(base_pressure=1e5, potential_temperature=288)
buoyancy = Breeze.MoistAirBuoyancy(; reference_constants)

Q₀ = 1000 # heat flux in W / m²
ρ₀ = Breeze.MoistAirBuoyancies.base_density(buoyancy) # air density at z=0
cₚ = buoyancy.thermodynamics.dry_air.heat_capacity
θ_bcs = FieldBoundaryConditions(bottom=FluxBoundaryCondition(Q₀ / (ρ₀ * cₚ)))
q_bcs = FieldBoundaryConditions(bottom=FluxBoundaryCondition(1e-2))

advection = WENO()
tracers = (:θ, :q)
model = NonhydrostaticModel(; grid, advection, buoyancy,
                            tracers = (:θ, :q),
                            boundary_conditions = (θ=θ_bcs, q=q_bcs))

Δθ = 5 # K
Tₛ = reference_constants.reference_potential_temperature # K
θᵢ(x, z) = Tₛ + Δθ * z / grid.Lz + 1e-2 * Δθ * randn()
qᵢ(x, z) = 0 # 1e-2 + 1e-5 * rand()
set!(model, θ=θᵢ, q=qᵢ)

simulation = Simulation(model, Δt=10, stop_time=2hours)
conjure_time_step_wizard!(simulation, cfl=0.7)

run!(simulation)

T = Breeze.TemperatureField(model)
heatmap(T)

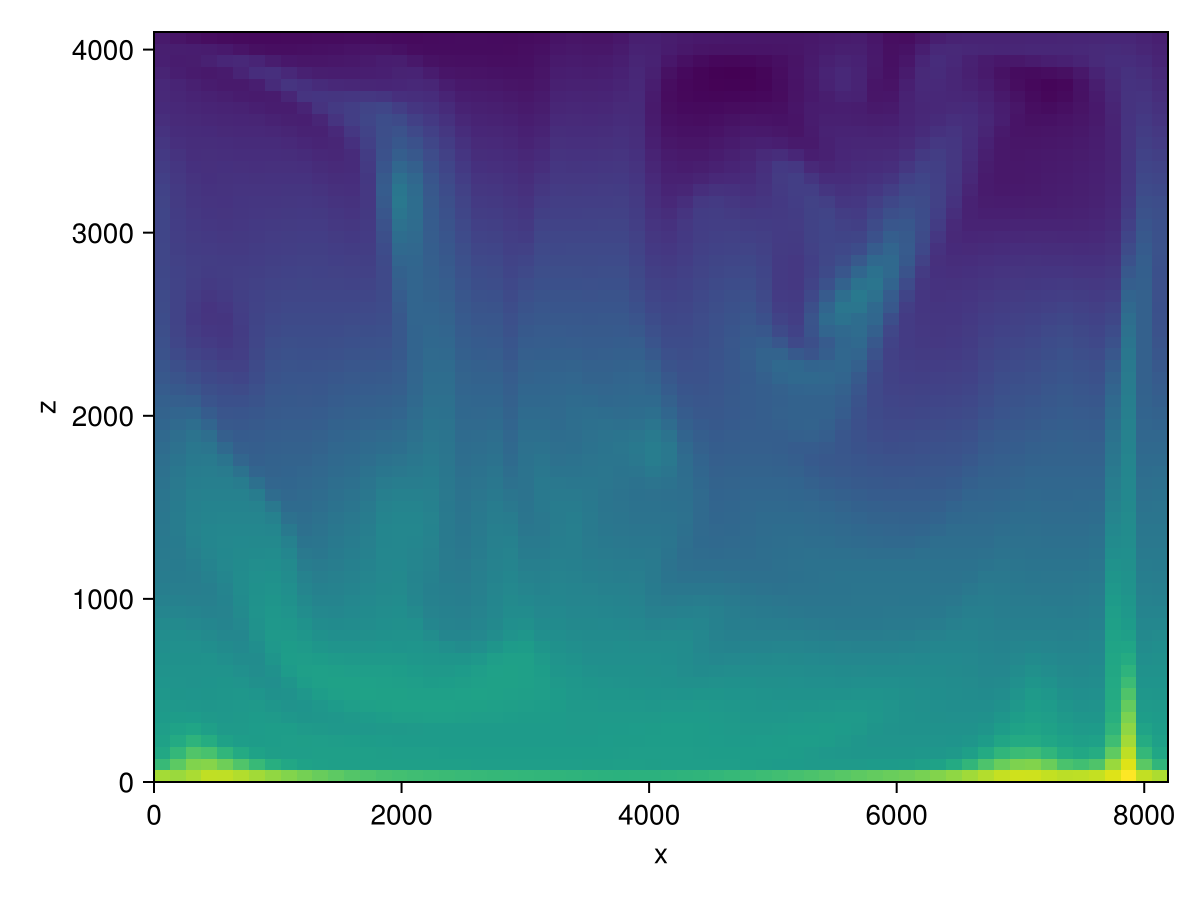

Example block output
