Breeze.jl

Fast, friendly atmosphere simulations on CPUs and GPUs.

Breeze provides software for flexible software package for finite-volume atmosphere simulations on CPUs and GPUs, based on Oceananigans. Like Oceananigans, it provides a radically productive user interface that makes simple simulations easy, and complex, creative simulations possible.

Features

Breeze provides two ways to simulate moist atmospheres:

  1. An AtmosphereModel which currently supports anelastic approximation following Pauluis (2008):

    • AtmosphereModel has simple warm-phase saturation adjustment microphysics
    • AtmosphereModel is being rapidly developed and changes day-to-day!
    • A roadmap is coming soon, and will include radiation, bulk, bin, and superdroplet microphysics, a fully compressible formulation, and more

  2. A MoistAirBuoyancy buoyancy implementation that can be used with Oceananigans' NonhydrostaticModel to simulate atmospheric flows with the Boussinesq approximation:

    • MoistAirBuoyancy includes a warm-phase saturation adjustment implementation
    • Note that our attention is focused on AtmosphereModel!

Installation

Breeze is a registered Julia package. First install Julia; suggested version 1.12. See juliaup README for how to install 1.12 and make that version the default.

Then launch Julia and type

julia> using Pkg

julia> Pkg.add("Breeze")

which will install the latest stable version of Breeze that's compatible with your current environment.

You can check which version of Breeze you got via

Pkg.status("Breeze")

If you want to live on the cutting edge, you can use, e.g., Pkg.add(; url="https://github.com/NumericalEarth/Breeze.jl.git", rev="main") to install the latest version of Breeze from main branch. For more information, see the Pkg.jl documentation.

Quick Start

A basic free convection simulation with an AtmosphereModel:

using Breeze
using Oceananigans.Units
using CairoMakie
using Random: seed!

# Fix the seed to generate the noise, for reproducible simulations.
# You can try different seeds to explore different noise patterns.
seed!(42)

Nx = Nz = 64
Lz = 4 * 1024
grid = RectilinearGrid(size=(Nx, Nz), x=(0, 2Lz), z=(0, Lz), topology=(Periodic, Flat, Bounded))

p₀, θ₀ = 1e5, 288 # reference state parameters
reference_state = ReferenceState(grid, surface_pressure=p₀, potential_temperature=θ₀)
dynamics = AnelasticDynamics(reference_state)

Q₀ = 1000 # heat flux in W / m²
thermodynamic_constants = ThermodynamicConstants()
cᵖᵈ = thermodynamic_constants.dry_air.heat_capacity
ρθ_bcs = FieldBoundaryConditions(bottom=FluxBoundaryCondition(Q₀ / cᵖᵈ))
ρqᵗ_bcs = FieldBoundaryConditions(bottom=FluxBoundaryCondition(1e-2))

advection = WENO()
model = AtmosphereModel(grid; advection, dynamics, thermodynamic_constants,
                              boundary_conditions = (ρθ=ρθ_bcs, ρqᵗ=ρqᵗ_bcs))

Δθ = 2 # ᵒK
Tₛ = reference_state.potential_temperature # K
θᵢ(x, z) = Tₛ + Δθ * z / grid.Lz + 2e-2 * Δθ * (rand() - 0.5)
set!(model, θ=θᵢ)

simulation = Simulation(model, Δt=10, stop_time=2hours)
conjure_time_step_wizard!(simulation, cfl=0.7)

run!(simulation)

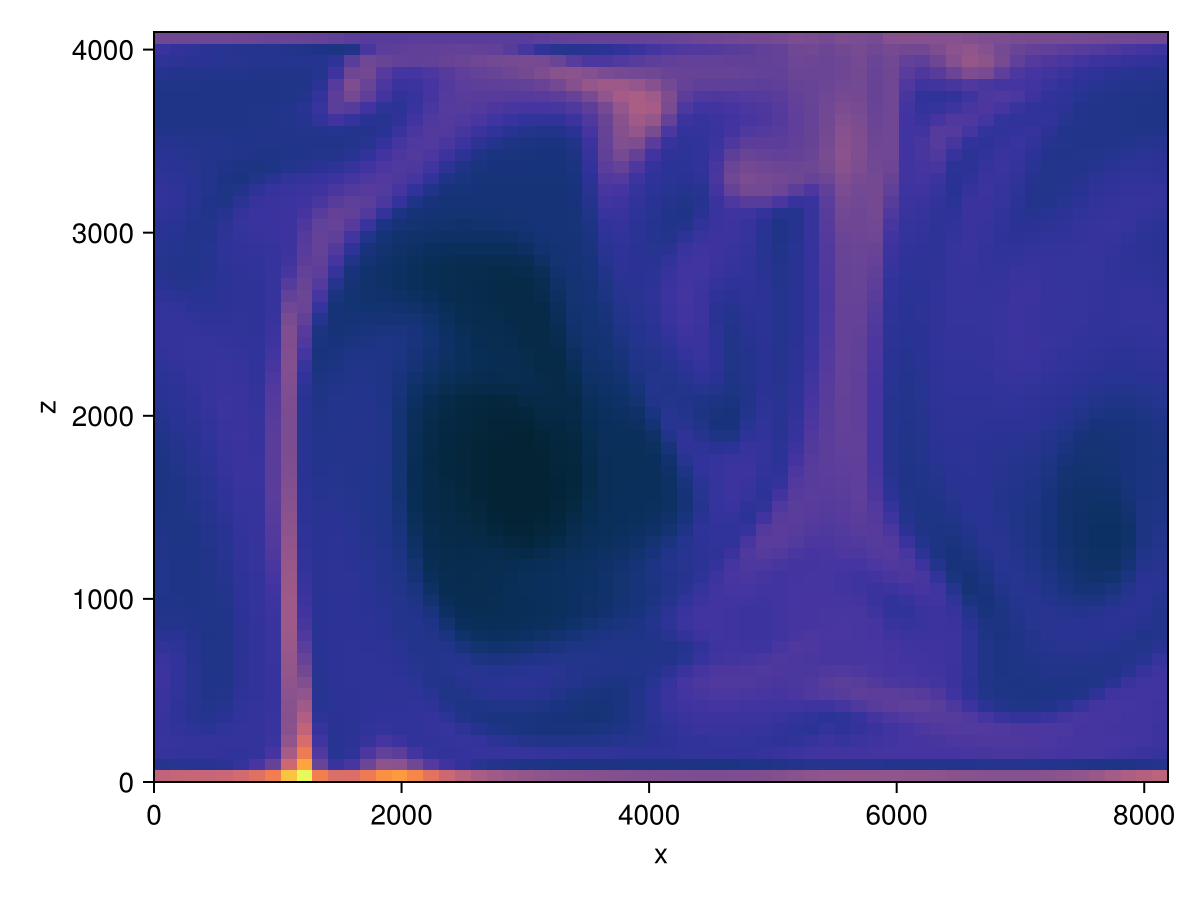

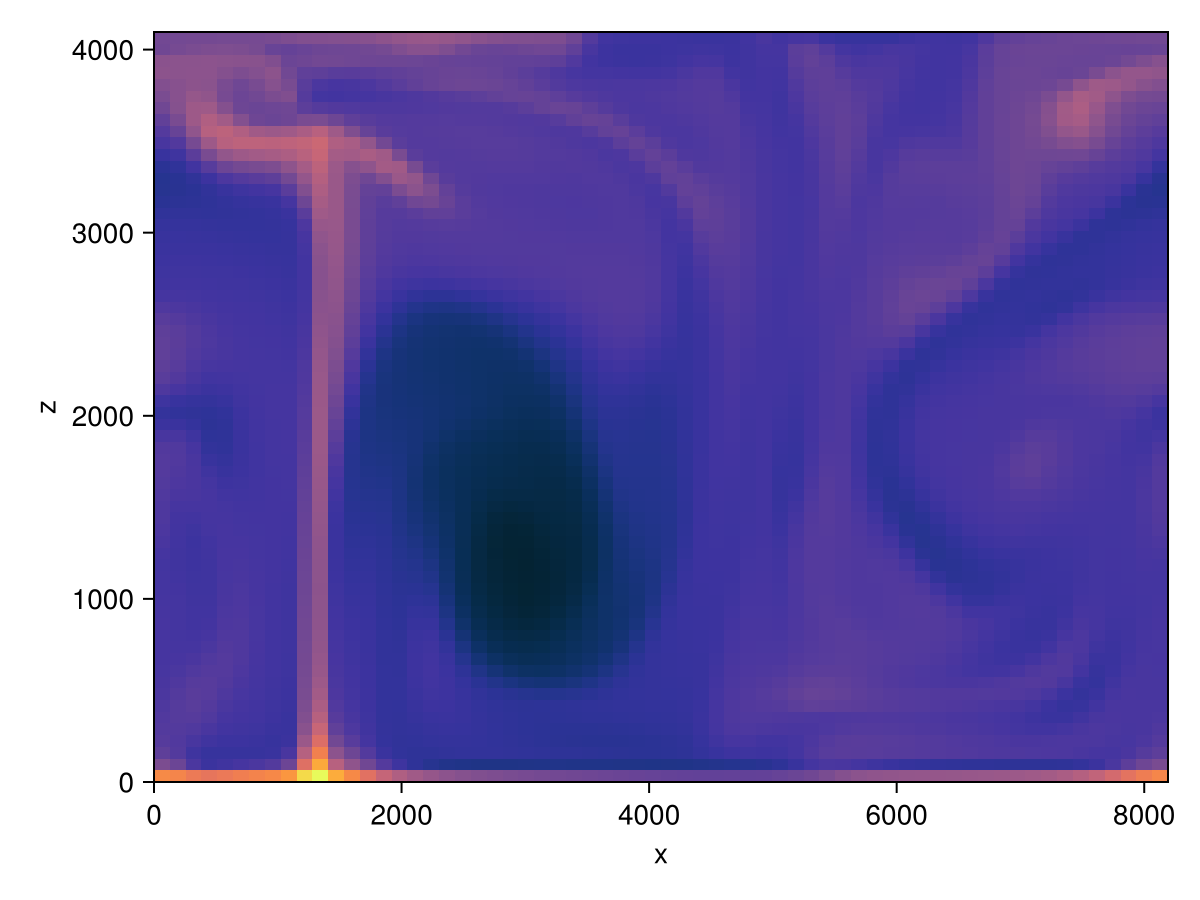

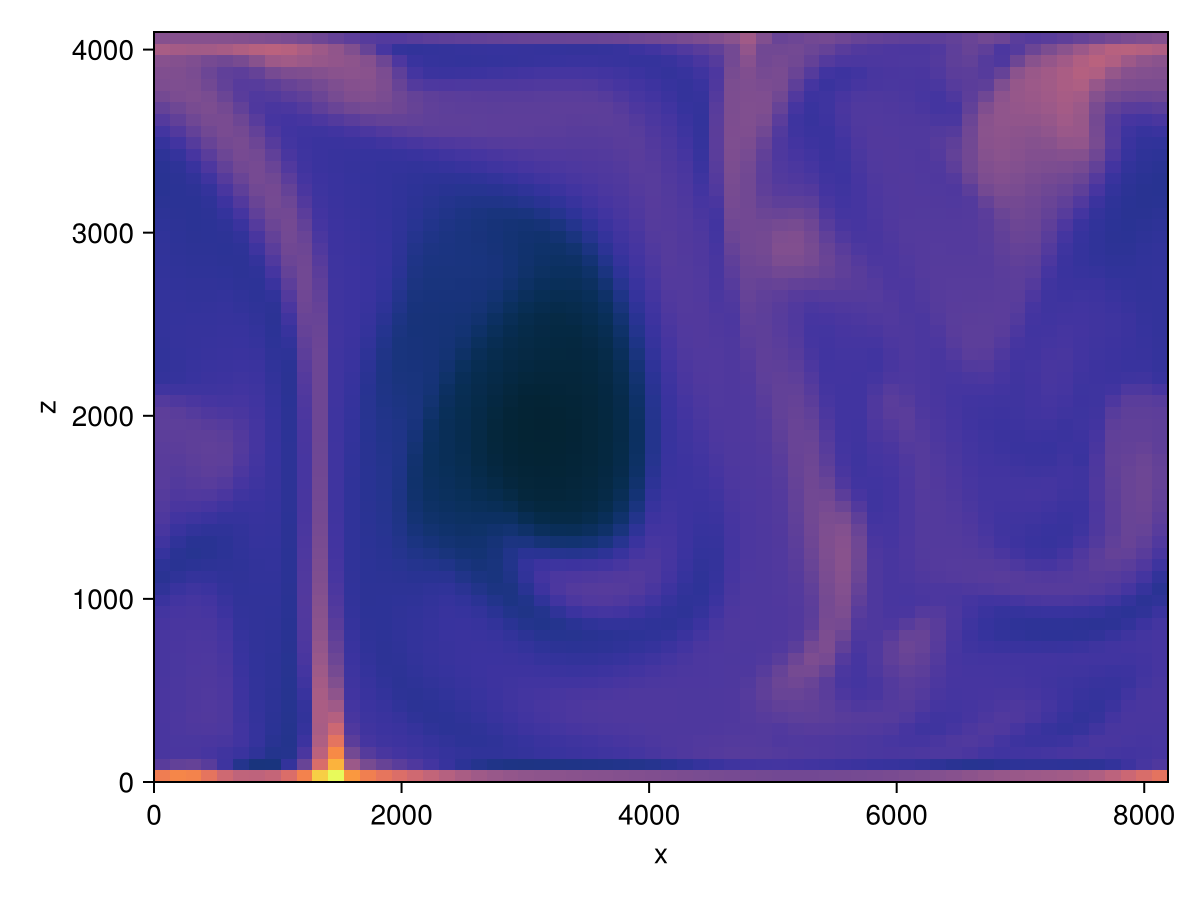

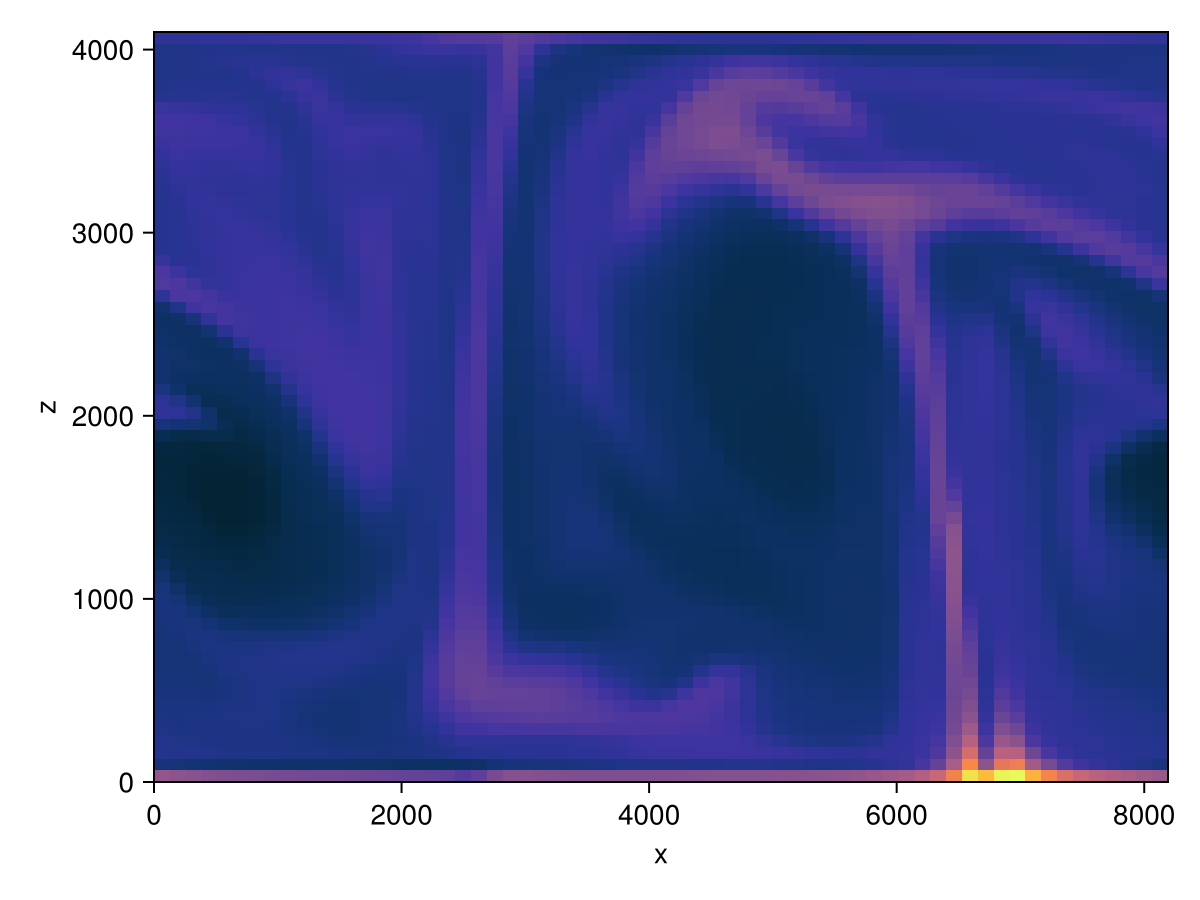

heatmap(PotentialTemperature(model), colormap=:thermal)
Example block output
