NumericalRadiation.jl

NumericalRadiation.jl is a standalone atmospheric radiation and gas-optics library compatible with ECMWF's ecRad/ecCKD data. It ingests reference ecCKD CKD-definition files into typed, Adapt.jl-aware look-up tables, evaluates g-point optical depths in a streaming gas-optics path that is allocation-free once warmed with caller-preallocated outputs, and solves clear-sky and all-sky two-stream column transport. It also bundles two analytic-band column schemes for intermediate-complexity models: the Williams (2026) 41-wavenumber clear-sky longwave and a SPEEDY-style one-band shortwave with diagnostic clouds.

Installation

using Pkg
Pkg.add("NumericalRadiation")

Quickstart

Run a clear-sky longwave column with an reference ecCKD model. The CKD-definition files resolve through lazy artifacts on first use; arrays are ordered top-to-bottom (pressure increasing downward), and gas entries are layer column amounts in mol m⁻².

using NumericalRadiation
using NCDatasets   # activates the NetCDF reader extension

gas_optics = read_reference_ecckd_gas_optics("32x32"; names=(:composite, :h2o, :co2))

constants = PhysicalConstants()   # Earth defaults: g, mᵈ, cᵖ, σ, S₀, …

Nz = 24
pᵢ = collect(range(10_000, 100_000; length=Nz + 1))   # Pa, TOA first
p  = 0.5 .* (pᵢ[1:end-1] .+ pᵢ[2:end])
nᵈ = hydrostatic_air_moles.(diff(pᵢ), constants.gravity, constants.dry_air_molar_mass)   # mol m⁻²

atmosphere = ColumnAtmosphere(;
    constants,
    pressure_layers = p,
    pressure_interfaces = pᵢ,
    temperature_layers = collect(range(220, 295; length=Nz)),
    temperature_interfaces = collect(range(215, 300; length=Nz + 1)),
    gases = (composite=nᵈ, h2o=0.005 .* nᵈ, co2=420e-6 .* nᵈ),
    surface = (temperature=300,),
    geometry = (cos_zenith=0.55,))

Ngˡʷ = length(gas_optics.longwave_weights)
Ngˢʷ = length(gas_optics.shortwave_weights)
longwave = LongwaveOptics(zeros(Ngˡʷ, Nz), zeros(Ngˡʷ, Nz);
                          source_top = zeros(Ngˡʷ, Nz),
                          source_bottom = zeros(Ngˡʷ, Nz),
                          weights = zeros(Ngˡʷ))
shortwave = ShortwaveOptics(zeros(Ngˢʷ, Nz); weights=zeros(Ngˢʷ))
fluxes = RadiativeFluxes(longwave_up = zeros(Nz + 1),
                         longwave_down = zeros(Nz + 1),
                         shortwave_up = zeros(Nz + 1),
                         shortwave_down = zeros(Nz + 1))

optical_properties!(longwave, shortwave, gas_optics, atmosphere)
surface_emission = surface_longwave_emission(gas_optics, 300)
radiative_fluxes!(fluxes, CloudlessLongwave(), longwave, atmosphere,
                  LongwaveBoundaryConditions(surface_longwave_up=surface_emission))

using Printf
@printf("outgoing longwave radiation (TOA): %6.1f W m⁻²\n", fluxes.longwave_up[1])
@printf("downwelling longwave at surface:   %6.1f W m⁻²\n", fluxes.longwave_down[end])
outgoing longwave radiation (TOA):  242.4 W m⁻²
downwelling longwave at surface:    325.6 W m⁻²

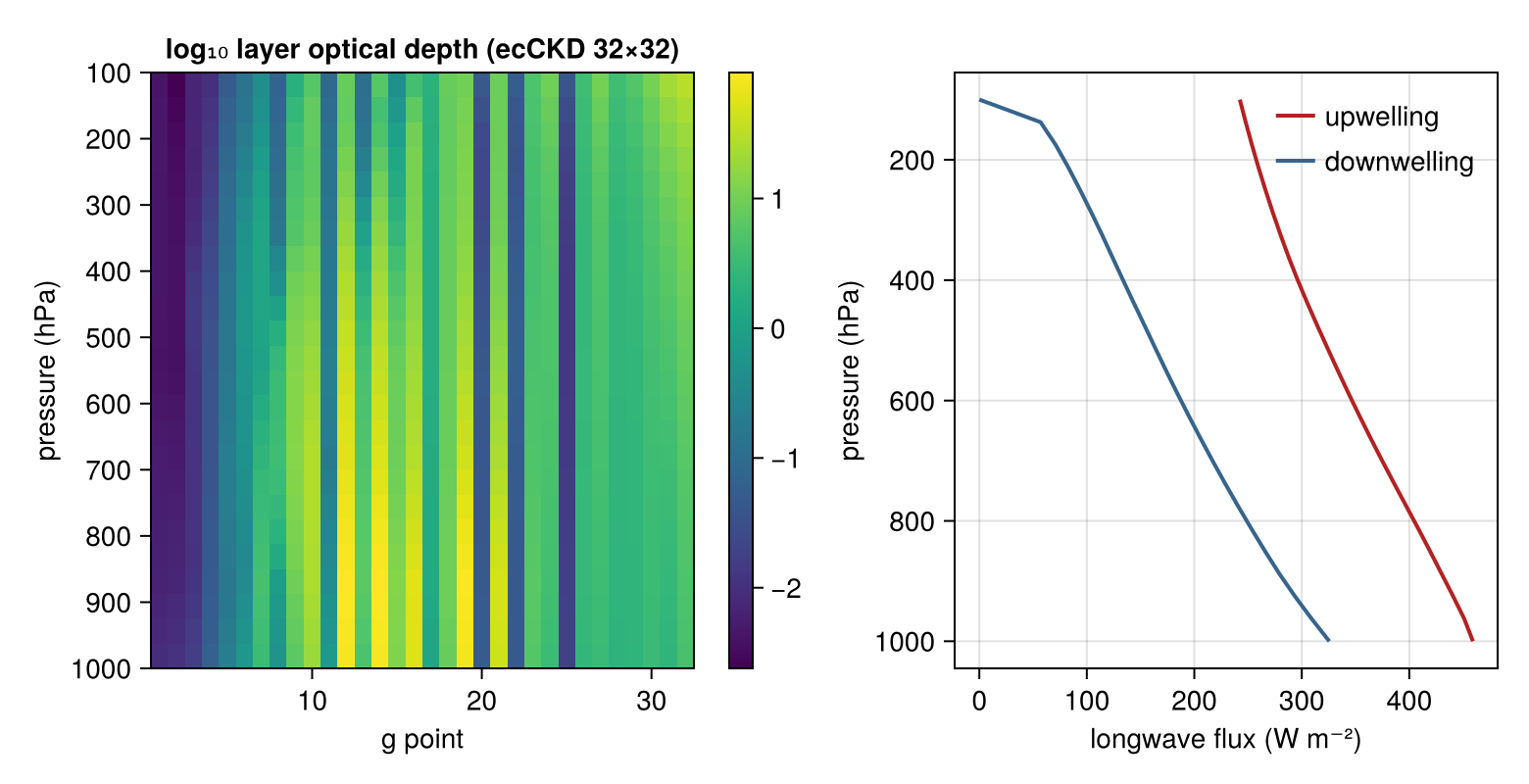

The g-point optical-depth table the model evaluated, and the resulting flux profiles:

using CairoMakie

fig = Figure(size=(780, 400))

ax1 = Axis(fig[1, 1]; xlabel = "g point", ylabel = "pressure (hPa)",
           yreversed = true,
           title = "log₁₀ layer optical depth (ecCKD 32×32)")
hm = heatmap!(ax1, 1:Ngˡʷ, p ./ 100, log10.(max.(longwave.optical_depth, 1e-8)); colormap=:viridis)
Colorbar(fig[1, 2], hm)

ax2 = Axis(fig[1, 3]; xlabel="longwave flux (W m⁻²)", ylabel="pressure (hPa)", yreversed=true)
lines!(ax2, fluxes.longwave_up, pᵢ ./ 100; color=:firebrick, linewidth=2, label="upwelling")
lines!(ax2, fluxes.longwave_down, pᵢ ./ 100; color=:steelblue4, linewidth=2, label="downwelling")
axislegend(ax2; position=:rt, framevisible=false)
fig
Example block output

The complete script, including the shortwave leg, is examples/ecckd_column.jl.
